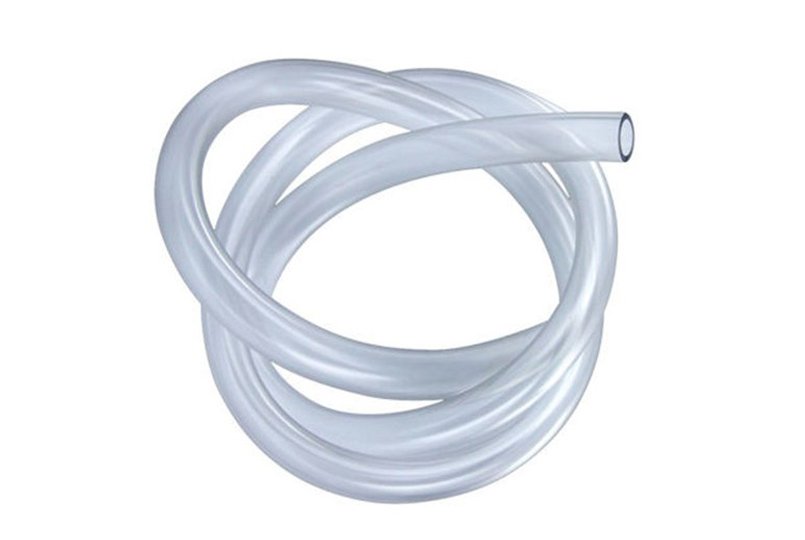

Medical Fluid Transfer Tubing
Flexible tubing for controlled transfer of liquid media in diagnostic, care, and device assembly systems.

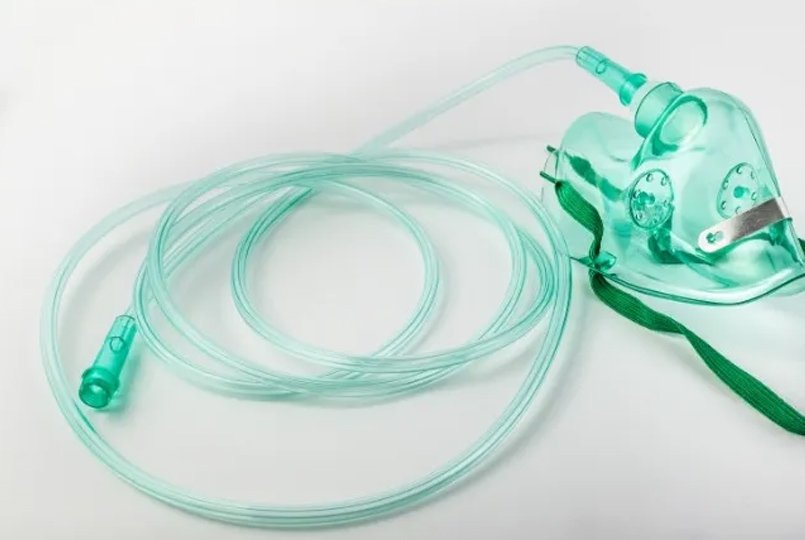

Custom Medical Grade Silicone Rubber Tubing
Custom medical-grade silicone rubber tubing designed to fit your device and carry fluids or air reliably.
- Custom ID, OD, thickness, hardness, color, and cut length
- Medical-grade LSR and platinum-catalyzed vulcanization
- ISO 13485 certified with ISO Class 8 cleanroom and Class 100,000 cleanroom production
What Is Medical Grade Silicone Rubber Tubing?
Medical-grade silicone rubber tubing carries fluids or air within medical devices. Its flexibility helps it follow the device's routing, while clear grades allow the contents to remain visible. The silicone grade and processing conditions are selected for the intended contact with the patient or fluid.
Compared with many plastic tubes, silicone rubber tubing stays flexible over a wider temperature range and has good recovery after bending or compression. It can be made transparent, translucent, or colored, and it can be supplied in custom sizes for device-specific routing and connection points.
Fecision supports medical silicone rubber tubing projects from material review to silicone rubber extrusion, cutting, inspection, and packaging.
Medical Silicone Rubber Tube Custom Manufacturing Service
Standard tubing may not follow a device's routing or fit its connectors. The tube needs to bend without restricting flow, with a wall thickness suited to the pressure and any repeated compression from a pump. Visibility and packaging requirements should also be defined for the application.
Fecision reviews how the tube will be used and sterilized before recommending a material. We check the drawing and routing against the fluid-contact requirements, then plan production around the order volume. Tubes can be cut and prepared for connector assembly, with marking and packaging to suit your project.
Medical Silicone Rubber Tubing Options
Tube design starts with the fluid it will carry and the space available inside the device. Pressure and pump action determine the mechanical requirements; the intended medical use determines the supporting documentation.

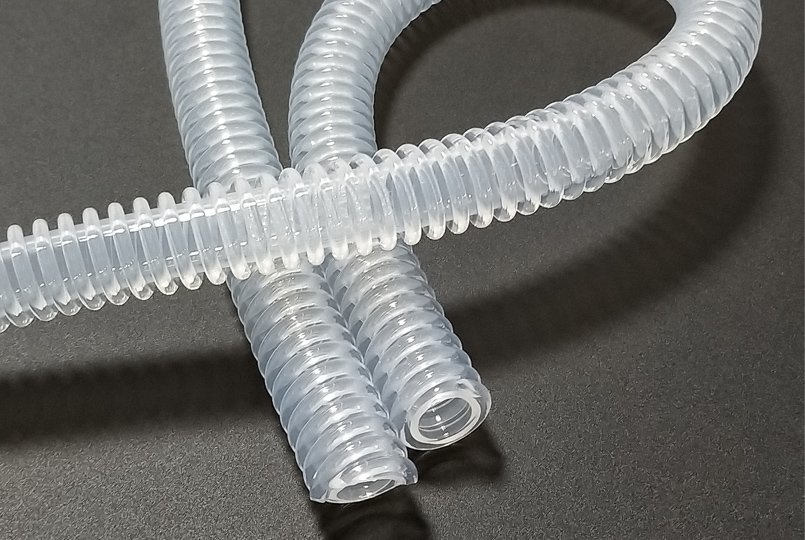

Respiratory Silicone Rubber Tubing
Soft silicone rubber tubes for air, oxygen, and respiratory device interfaces where flexibility and sealing fit matter.

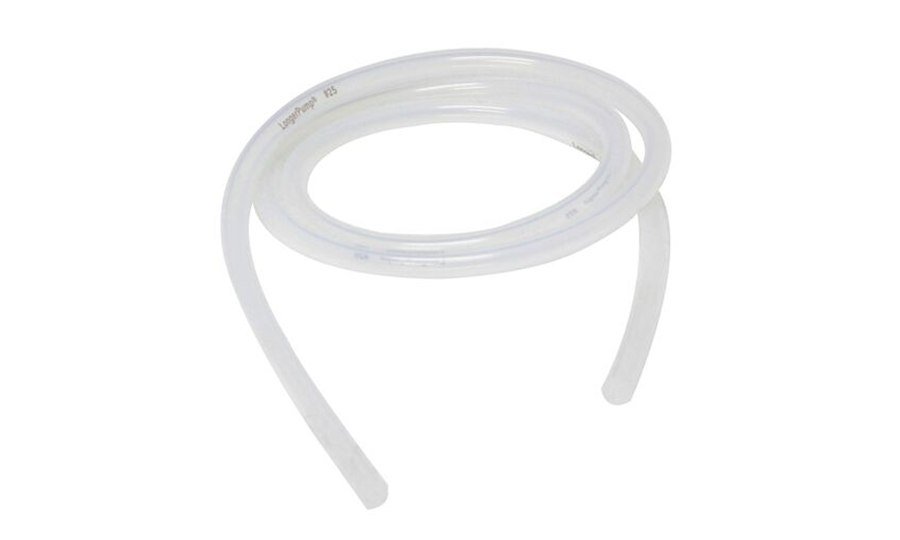

Peristaltic Pump Tubing
Silicone rubber tubing can be selected for repeated compression where elastic recovery and stable flow are important.

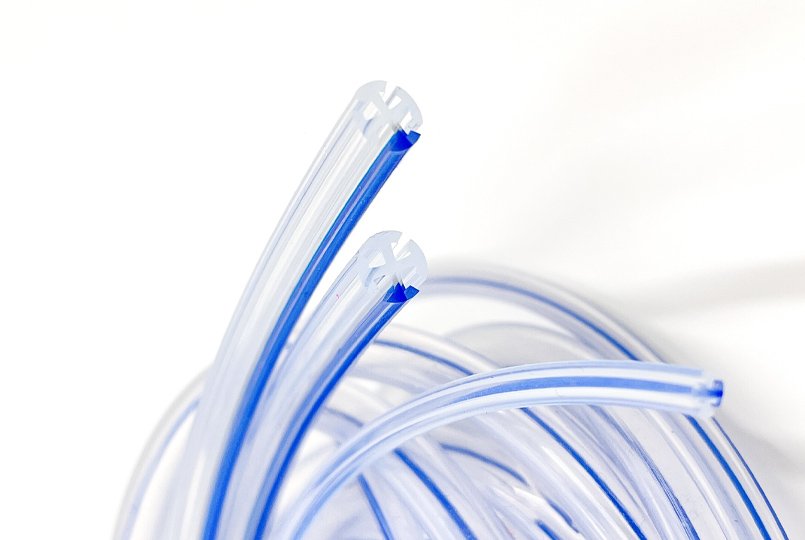

Drainage Tubing
Custom tube dimensions can be matched to drainage reservoirs, suction bulbs, connectors, and closed fluid paths.

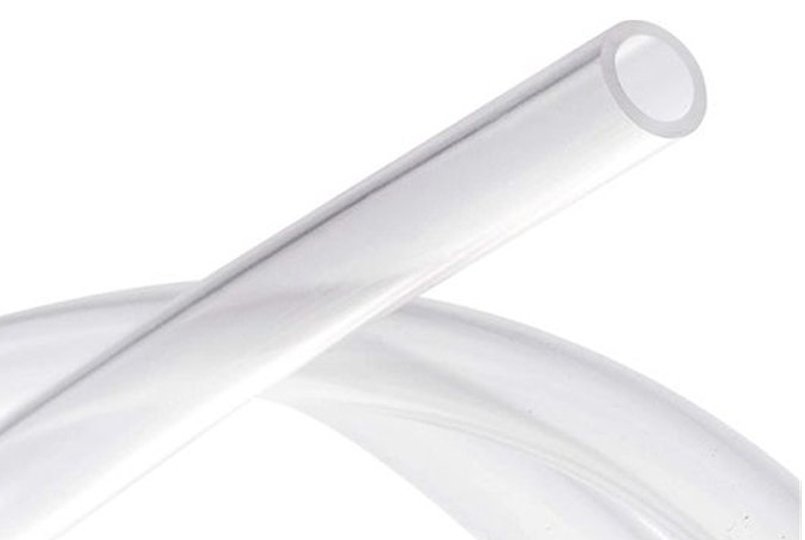

Transparent Silicone Rubber Tubing
High-transparency silicone rubber tubing helps operators observe flow, bubbles, or blockage in device assemblies.

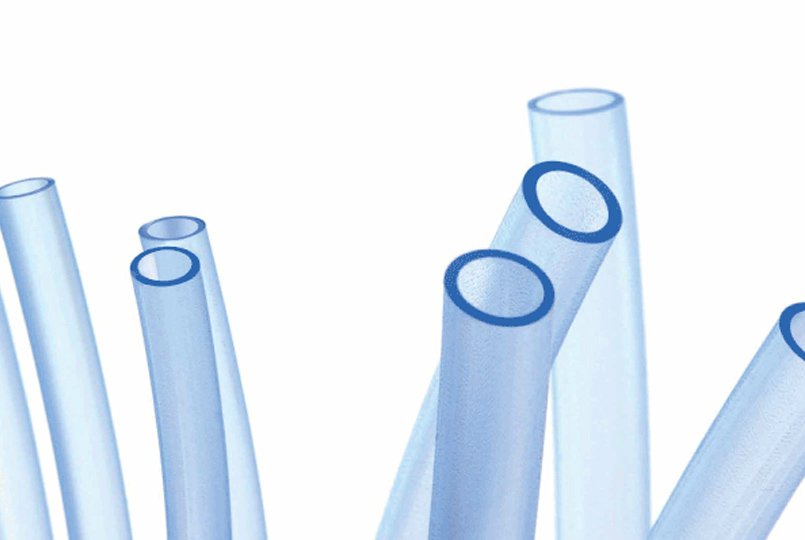

Custom Silicone Rubber Tube Profiles
Non-standard cross-sections, sleeves, profiles, and formed tube sections can be reviewed for custom device fit.
Medical Silicone Rubber Tube Manufacturing Process
A stable tube project needs material control, extrusion stability, clean cutting, and inspection planning before production release.
1
Material Review
We select the compound for the fluid it will carry and the planned sterilization method. Hardness and visibility requirements are then checked against the available material documentation.
2
Silicone Rubber Extrusion
The silicone rubber compound is extruded through a die to form a stable tube cross-section. ID, OD, wall thickness, and surface appearance are monitored during production.
3

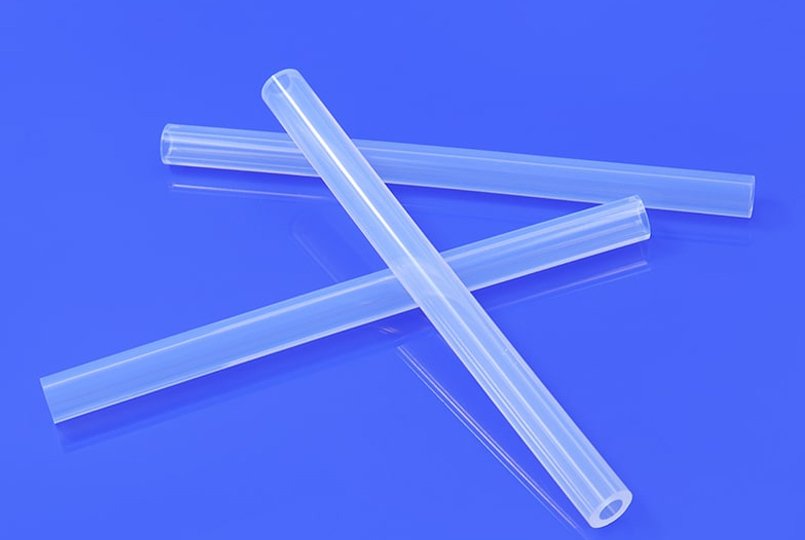

Secondary Operations
Tubing can be supplied in coils or cut for assembly. We can add markings and prepare connection features to match the design.
4
Inspection And Packaging
Before releasing a lot, we check the tubing against the approved dimensions and material specification. Surface inspection and packaging checks confirm that it is ready for the agreed handling route.
Custom Silicone Rubber Tube Capabilities
Tube specifications can be adjusted around function, assembly fit, cleanliness, and documentation requirements.
Medical Silicone Rubber Tube Design Factors
For faster quotation and sampling, define the tube size and the real working condition before tooling or extrusion setup begins.
| Design Factor | What To Confirm | Why It Matters |
|---|---|---|
| ID, OD, wall thickness | Target dimensions, tolerance, and drawing standard | Controls flow path, connector fit, kink resistance, and pressure behavior |
| Hardness | Shore A value or reference sample | Affects softness, collapse resistance, bend feel, and compression recovery |
| Contact media | Fluid, gas, cleaning agent, temperature, and contact time | Guides material compatibility review and aging risk control |
| Secondary operations | Cutting, holes, printing, bonding, connectors, or packaging | Prevents late assembly issues and keeps production planning realistic |
ISO Class 8 cleanroom production
Medical silicone rubber tubing may be used in fluid transfer, respiratory airflow, drainage, pump lines, and device assemblies. These applications often need controlled handling after extrusion, cutting, secondary processing, and packaging.
Fecision supports ISO Class 8 cleanroom production, also known as Class 100,000, where the project requires controlled particle exposure. Clean handling and packaging procedures protect the tubing, with lot records supporting traceability.
Quality Control For Medical Silicone Rubber Tubing
Medical silicone rubber tubing needs repeatable dimensions, stable surface quality, and controlled handling. A small change in wall thickness, cut length, or connector fit can affect assembly performance.
- Material traceability and compound verification before production
- Dimensional checks for ID, OD, wall thickness, and cut length
- Appearance inspection for surface defects, contamination, and deformation
Need Custom Medical Grade Silicone Rubber Tubing?
Send your drawing and production quantity. Fecision can review the extrusion plan before quoting.
